SPECIFICATIONS



Brand Name: MHPOWOS

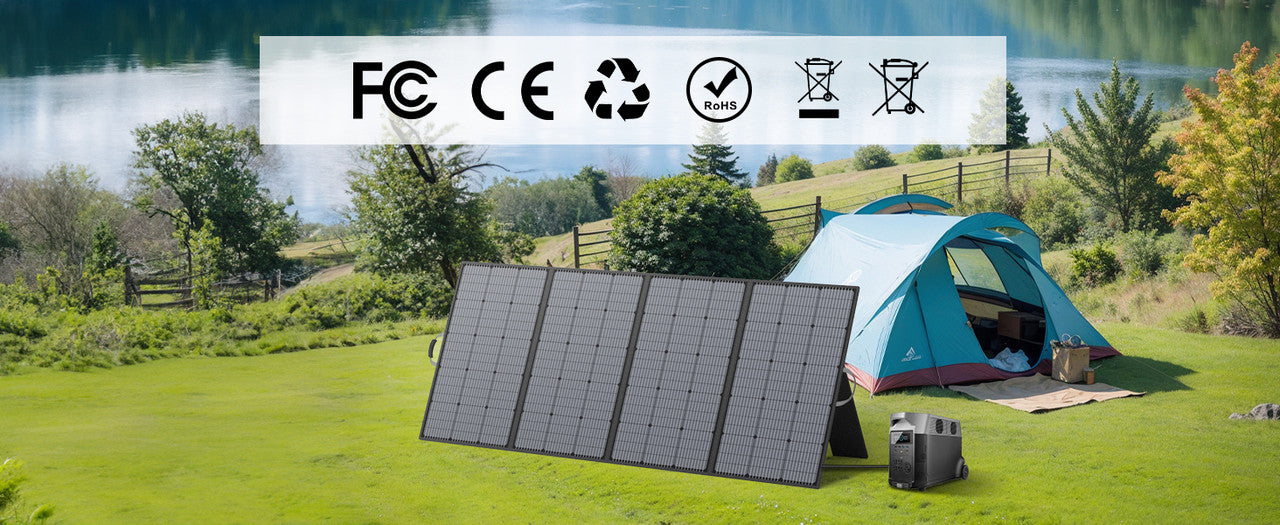

Certification: CE,FCC,RoHS,pse,weee

Deployment size: 2335 x935x 28 mm

Flexible Solar Panel: No

Foldable Solar Panel: Yes

Folding Size: 940 x 585 x 70mm

Hign-concerned Chemical: None

Material: Monocrystalline Silicon

Max. power: 400W

Maximum Power Current (lmp): 12A Max

Maximum Power Voltage (Vmp): 31V

Model Number: MH-SP-003

Module Efficien: 24%

Number of Panels: 4

Open Circuit Voltage (Voc): 38V

Operating Temperature: -20~60C/-4~140 F

Origin: Mainland China

Peak Power: 400W±5%

Short Circuit Current (loc): 13A

Size: 940 x 585 x 70mm

Solar Energy Conversion Rate: 23.5%

Type: Solar Panel

MHPOWOS 400W 31V Portable Foldable Solar Panel With Extension Cable

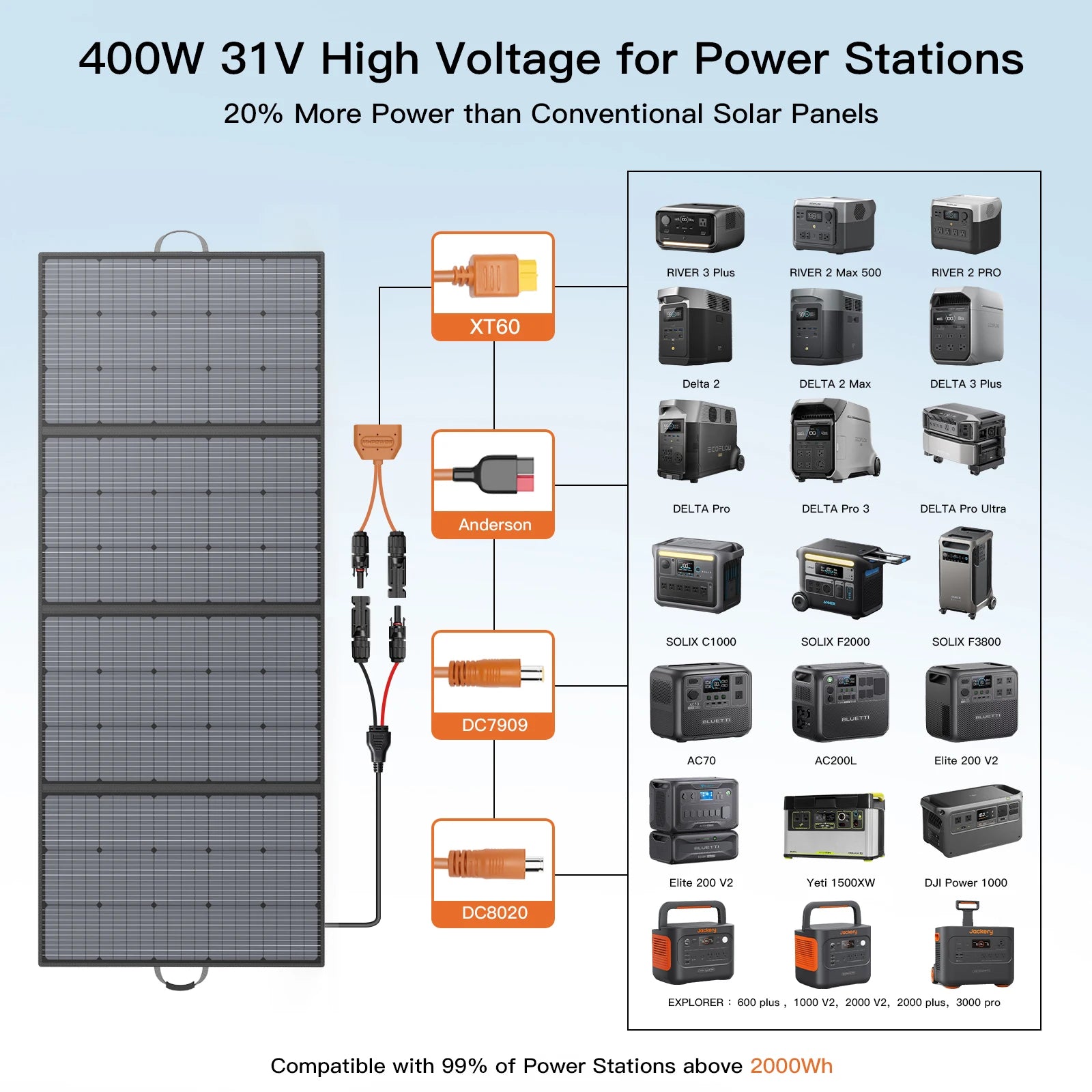

(7 in 1 Solar panel extension cable connector to XT60,Anderson,DC5521,DC35135,DC5525,DC7909,DC8020)

Portable for Outdoor RV Camping and Home Power station Backup.Perfect for outdoor camping, RV trip and home use! The solar panel is RV camping outdoor necessity saving valuable space with compact design.

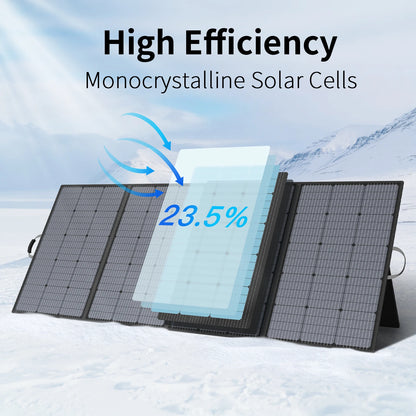

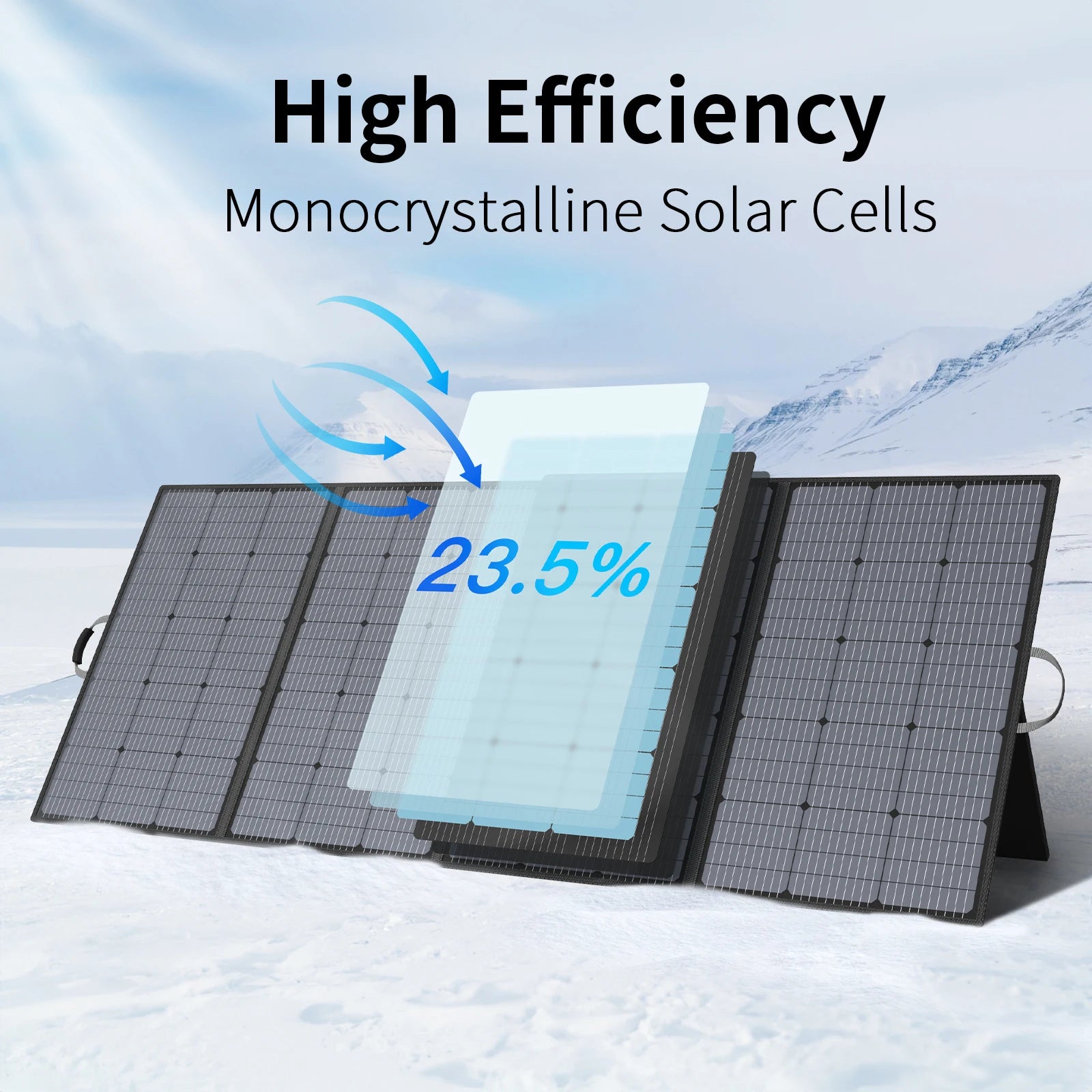

Upgraded Highly Efficiency Monocrystalline Solar Technology with 23.5% Solar Conversion Rate:MHPOWOS Solar panel has an industry-leading 23.5% conversion rate charging faster with high 400W solar power. 400 watt foldable solar panel converts sunlight into renewable clean solar energy supply and generates more energy performing better than other similar traditional portable solar panels in all weather conditions.

Get faster and easier charging wherever you are! Quickly power up your devices such as powerstations,solar generators, computers at anywhere, anytime!

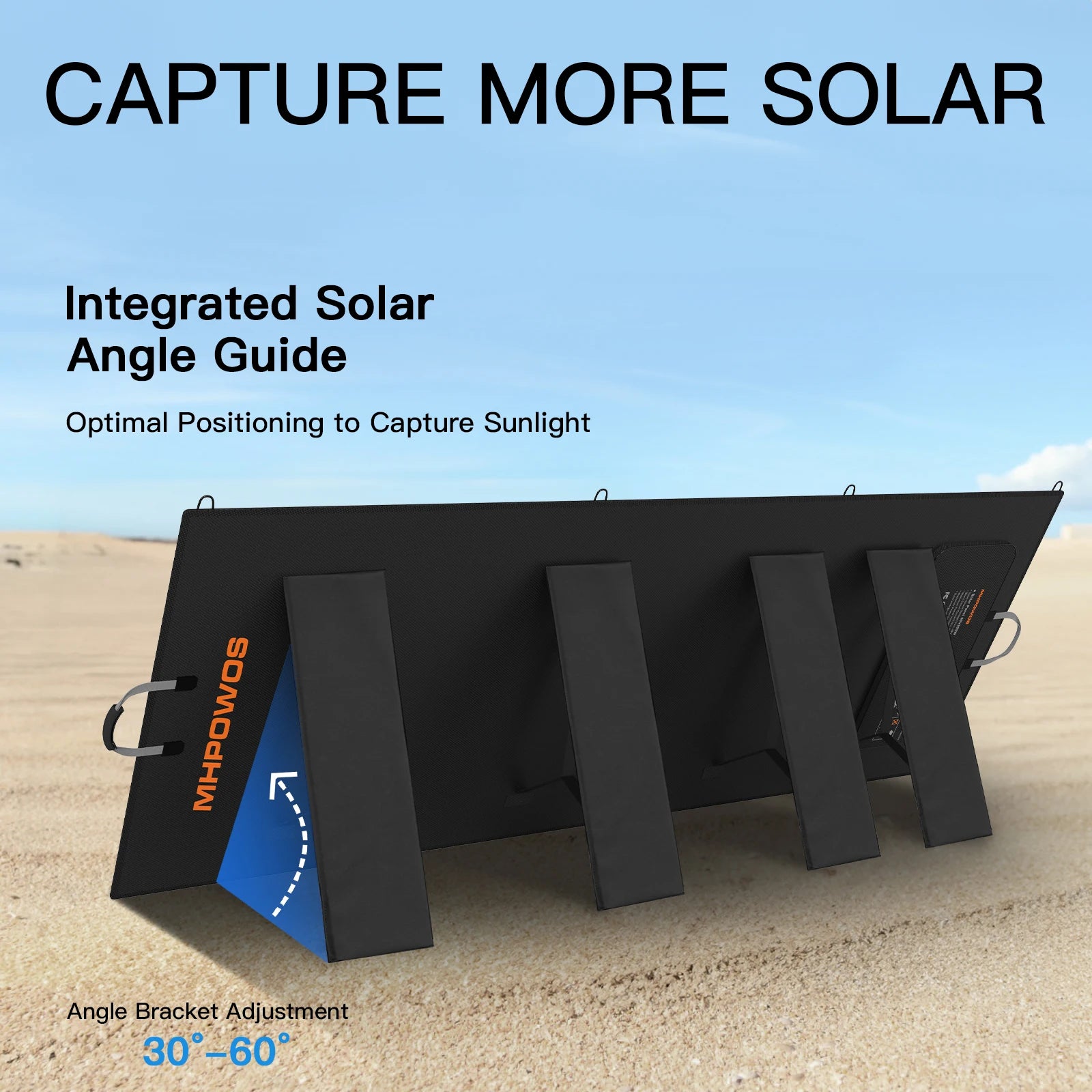

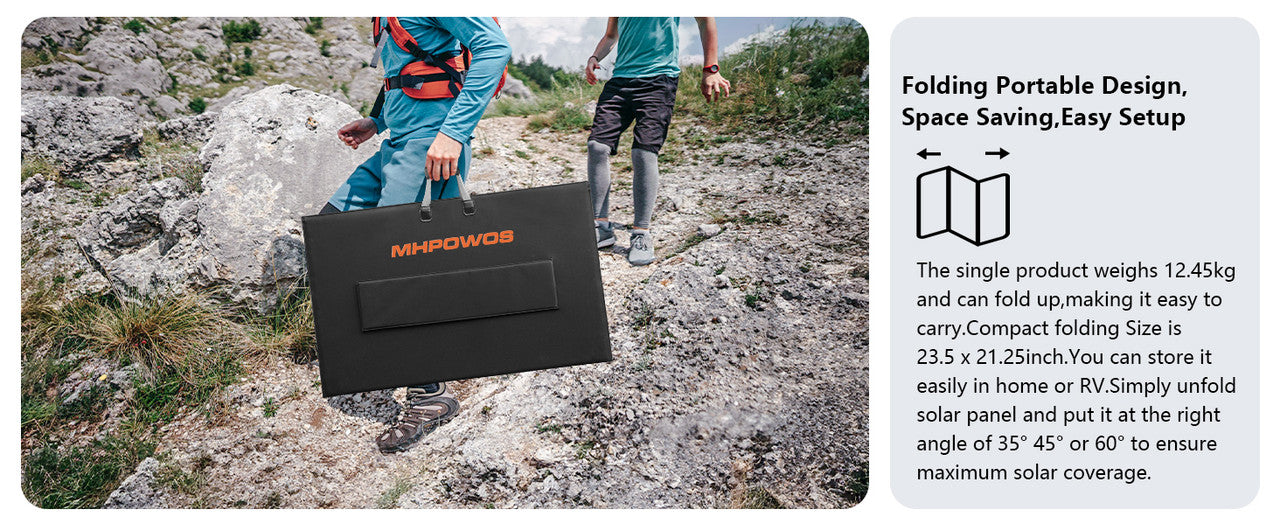

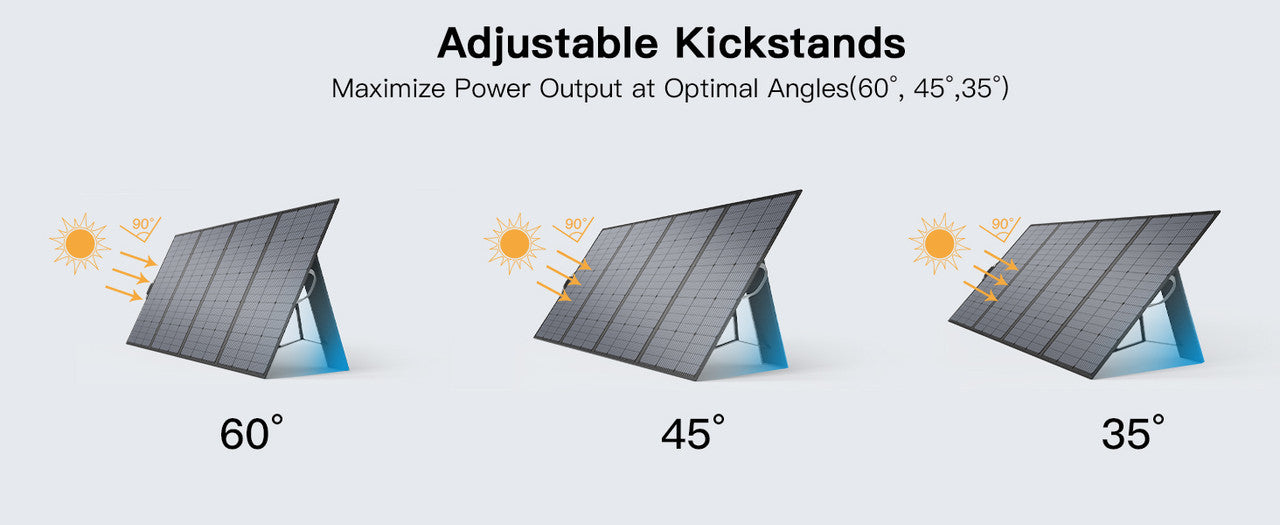

Powerful Portable Foldable Solar panel and Self-Kickstand with an adjustable angle:Take it to outdoor camping, road trips or home backyard for power backup with a designed folding case.MHPOWOS solar panel is more lighter and convenient than other similar portable solar panels in the market.The single product weighs 12.45kg and can fold up,making it easy to carry.Simply unfold solar panel and put it at the right angle of 35° 45° or 60° to ensure maximum solar coverage.

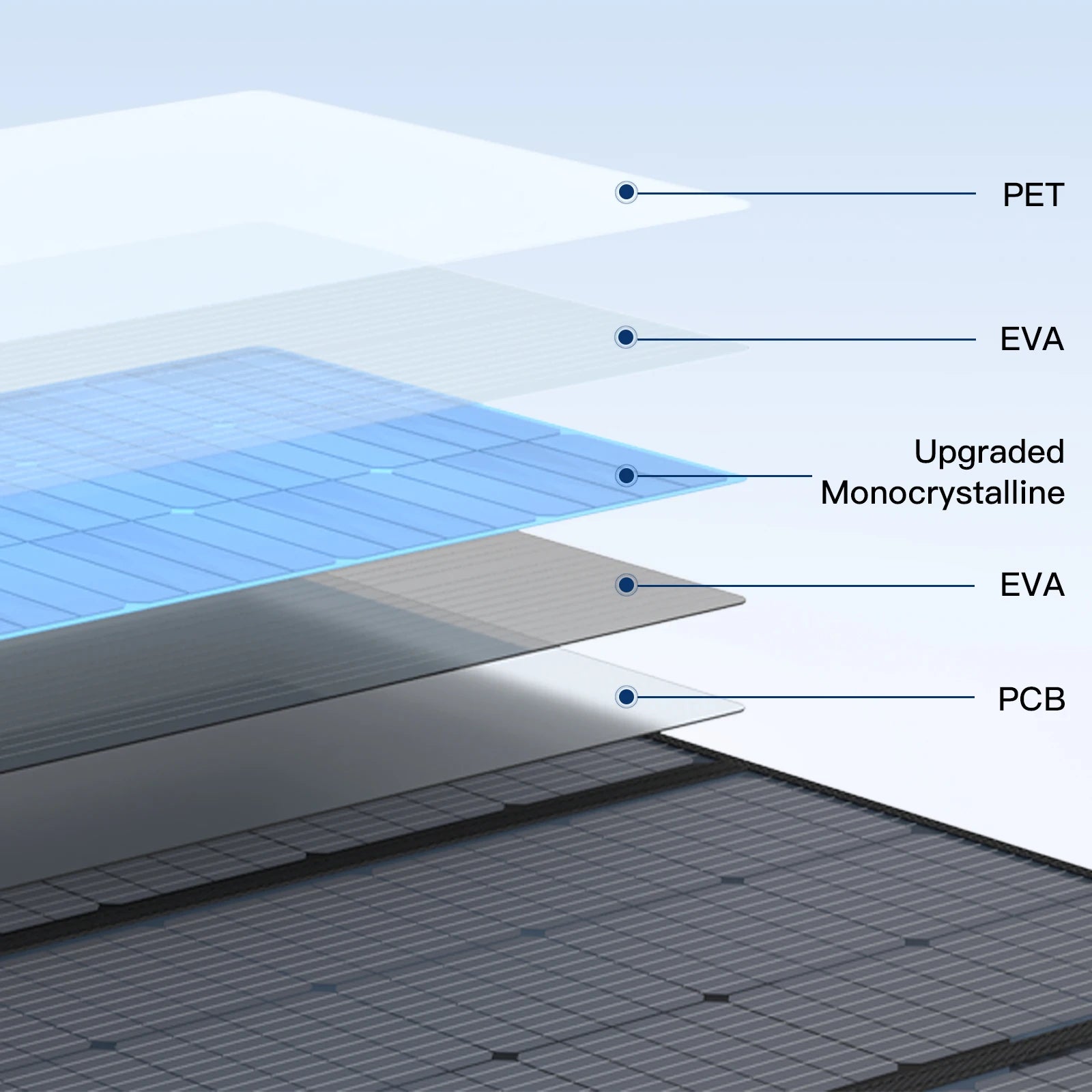

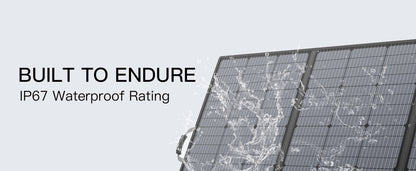

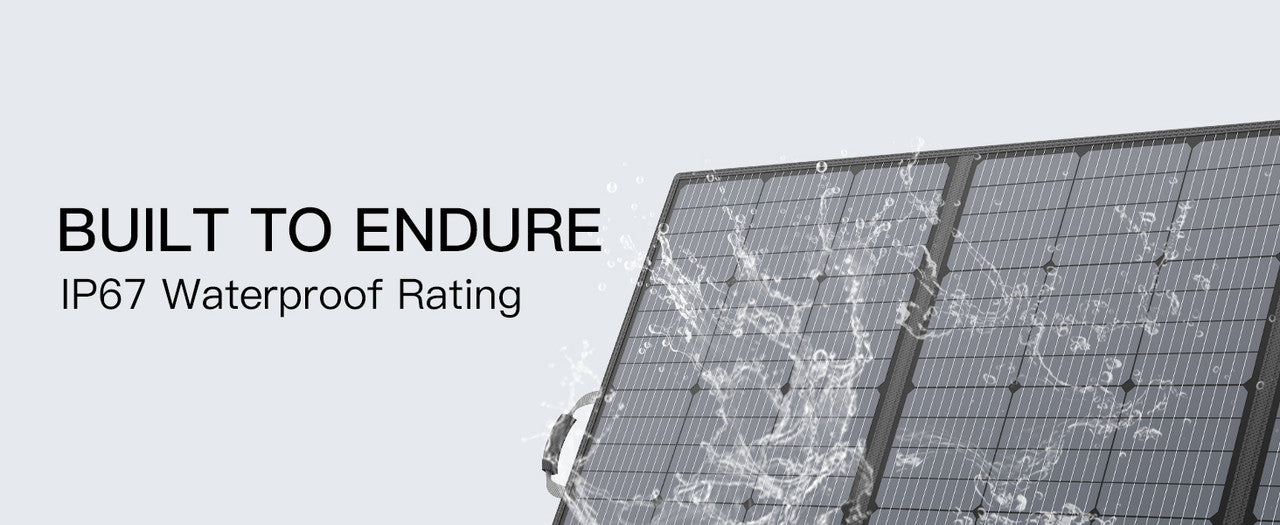

IP67 Waterproof and Durable:MHPOWOS portable solar panel is IP67 rated for waterproof and dust resistance.Solar panel 400w consists of multiple layers of PET EVA PCB and upgraded monocrystalline for better durability.Simply unfold 400w solar panel, adjust stand and start to get clean and green energy power.400 watt solar panel is designed to withstand harsh and adventurous environment for outdoor activities.

Installation Suggestion:Install the solar panel in the sunniest place possible, in a location that prevents accidental damage to the panel.Place the solar panel directly under the sun at an angle of 35 45 or 60 degrees to the ground.

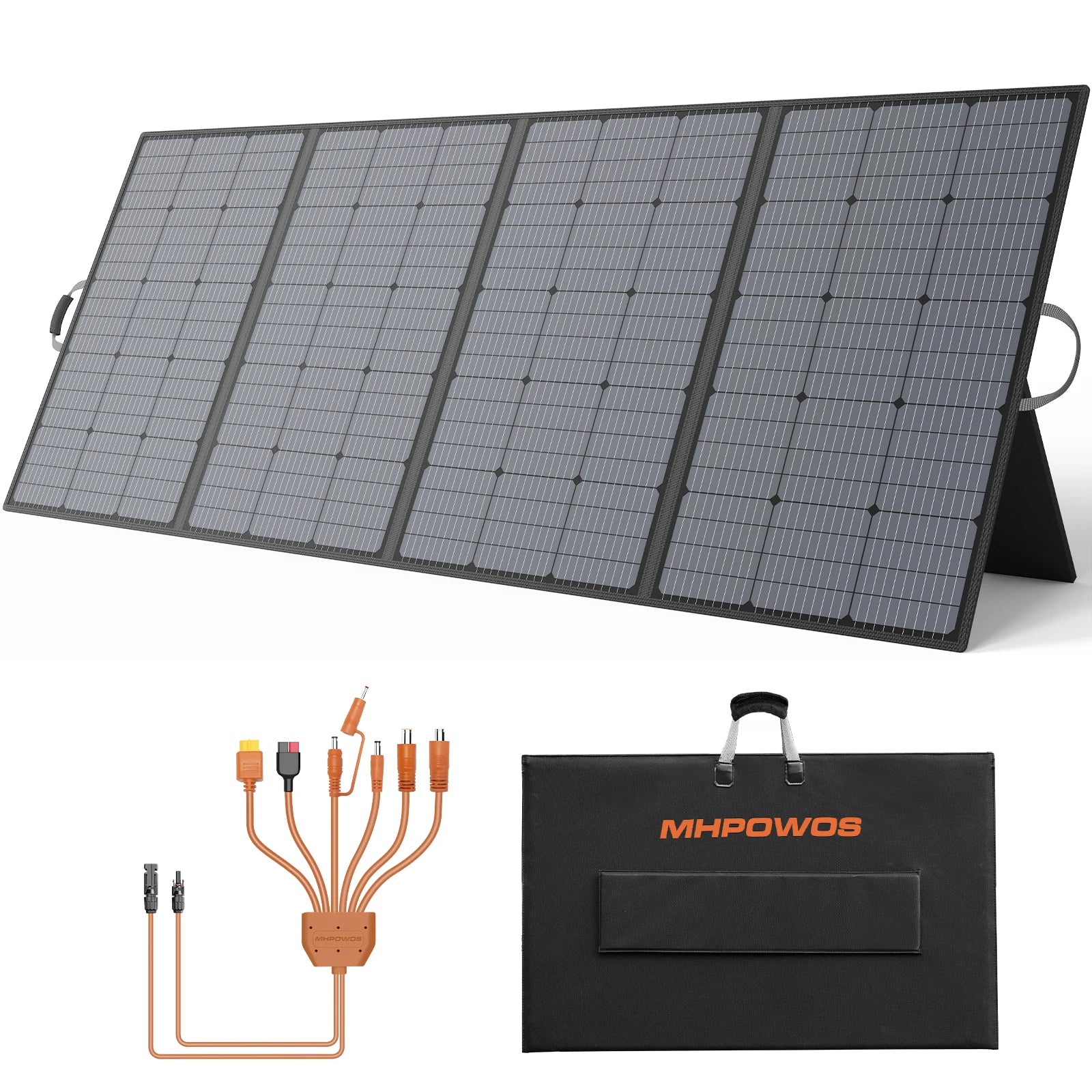

What's included:1* 400 watt Solar Panel with User Manual and a (7 in 1 Solar panel extension cable connector to XT60,Anderson,DC5521,DC35135,DC5525,DC7909,DC8020,Cable Length 1Meter/39.37in)

Technical Specification

Color:Black,Warranty:18 Month Long Term Warranty.

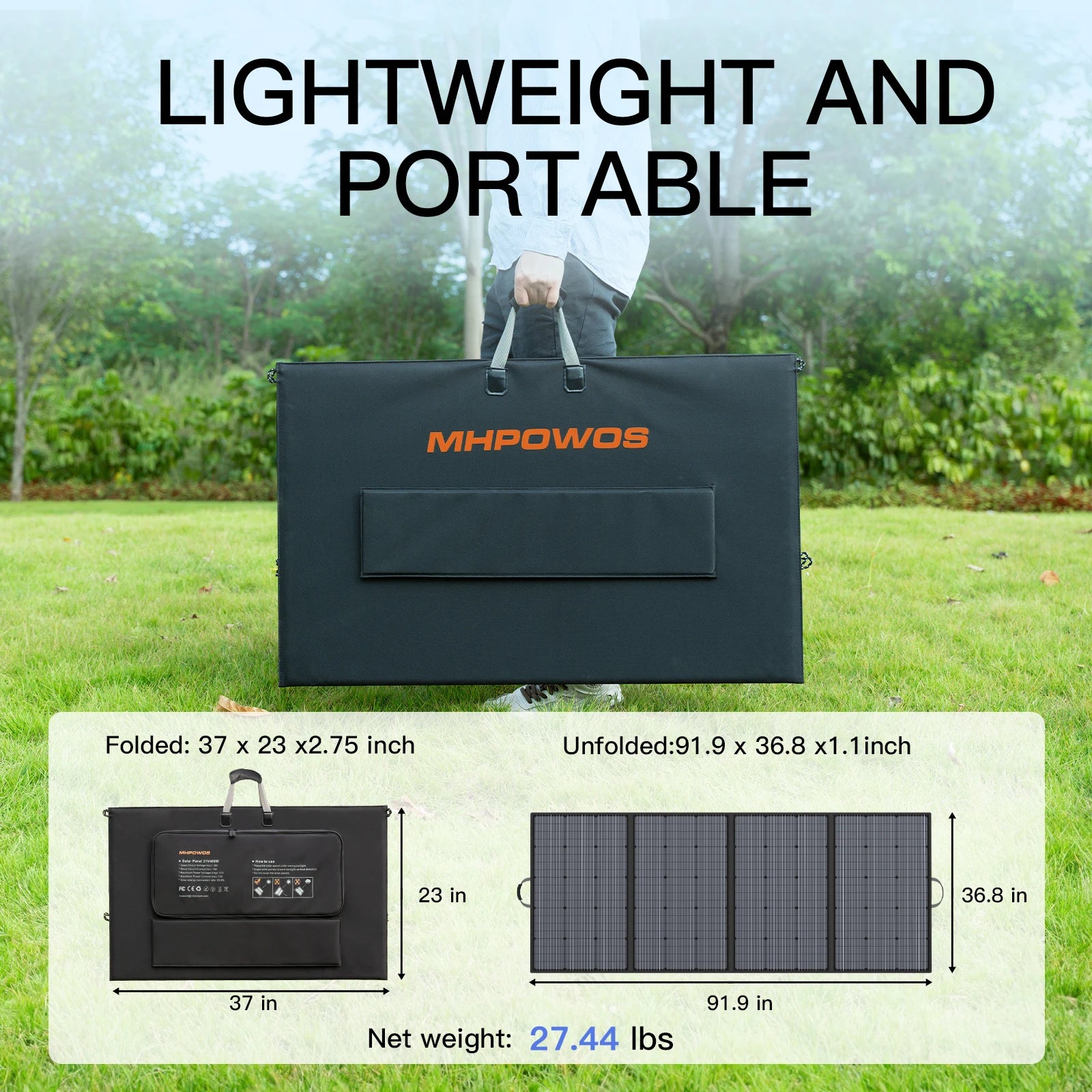

Unfolded Dimensions:2335x935x28mm(91.9x36.8x1.1inch),Folded Dimensions: 940 x 585 x 70mm(37 x 23 x2.75 inch),Weight:12.45kg,27.45lb.

Peak Power:400W, Open Circuit Voltage (Voc): 38V, Short Circuit Current (loc): 13A.

Maximum Power Voltage (Vmp): 31V, Maximum Power Current (lmp): 12A Max.

Efficiency: 23.5% Solar Energy Conversion Rate. Cell Type:Monocrystalline Silicon.

Connector Type:Solar Connector,Waterproof rating:IP67,Operating Temperature:-20~60C/-4~140 F.

All technical data at standard test condition: E=1000W/m²TC=25C AM=1.5
